BRICK TRACKING SYSTEM

T|BRICK
Brick Tracking System

Brick Tracking system has been designed to mainly deskill the otherwise quite difficult installation of individual brick slips. Fibre cement tracking sheets are installed as backing boards either to timber or steel battens. Fixing to flat surfaces is also possible. Fibre cement boards  are non-combustible in A1 fire class and are provide fire protection to buildings.

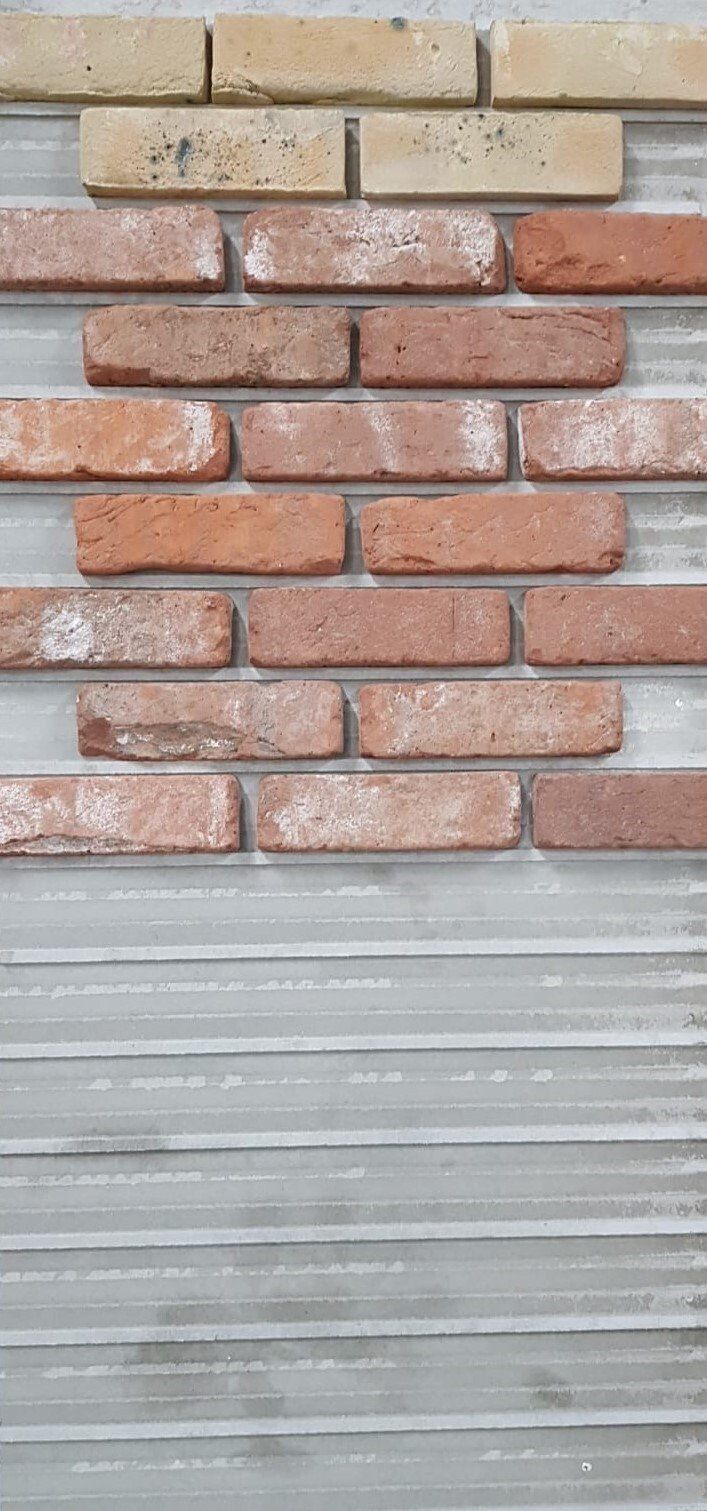

Brick slip installation can proceed swiftly as the backing boards are grooved to certain heights using CNC machinery in order to maintain uniform coursing. Suitable for most types of construction, solid wall, cavity wall, timber and steel frame.

Vast choice of brick slips is available: extruded, hand-made, reclaimed,  long format brick slips or glazed ones.  Bold and sharp colours in variety of sizes in British and European formats. 10 colours of pointing mortar with trass specially designed for brickwork.

8 reasons to use T|BRICK Brick Tracking System

We work with you to come up with the very best solutions for your challenges!

01

Faster installation

Fast and simple installation: 2 men gang can install up to 4 square metres in an hour

02

Lightweight & thin

System depth from only 20mm  and weight from only 35kg per sqm. Easy to handle

03

Simple

Installation can be done by people without any experience in bricklaying. Fibre cement boards are easy to fix and grooves help maintain coursing

04

High quality

High quality system components guarantee superior exterior finish, longevity, durability and grand appearance for many years

05

Versatile

Ideal rain screen for both on site construction or for prefabricated buildings. Designed for installation on all construction types

06

Eco friendly

System comes with natural kiln-fired bricks in selection of types, e.g. handmade or extruded as well as long or roman brick slips etc

07

Safe

For complete peace of mind we offer 10-year warranty on the system

08

Protective

Fibre cement board is fire proof and resistant to weather. Combined with brick slips and pointing mortar, it provides perfect protection against weather and elements

Brick Tracking System - Standard Range

These are brick slip finishes that fall in the budget and standard price range.

Brick Tracking System - Premium Range

The below brick slip finishes fall into standard and premium price range.

Brick Tracking System - Budget Range

The below brick slip finishes fall into budget price range.

System Elements

Boards and slips making up the system

Frequently asked questions

Please refer below to the questions we are frequently asked
  • Can these brick panels be installed both externally and internally?

    Yes. They are mainly designed for exterior use, however can also be used on internal walls. The panels were tested for thermal shock to ETAG 004:2013 and no damage was detected. They were also tested for frost damage and freeze-thaw according to ETAG 004:2013 and no damage was detected either.

  • Are the panels difficult to install?

    Not at all. They can be installed even by a DIYer.

  • What surfaces can the panels be installed onto?

    They can be installed on block work, timber frame  as well as insulated concrete form. Each application can be with or without timber battens. Please contact us for details.

  • Do panels require any sealing or maintenance?

    No, they do not. They are virtually maintenance free and do not require sealing. However, sealing will do no harm, and can improve the resistance to contaminants, organic growth or elements. We also supply water-repellent sealers which do not affect the colour of stone, and sealers that create wet-look effect.

  • Are they suitable for wet areas?

    Yes, as a natural brick product they are.

  • Are they resistant to heat?

    The panels were tested for fire resistance and reaction to fire to EN 13823:2010, EN 11925-2:2010+AC:2011 and EN 13501-1 - they were classed as fire class B. The panels also come in fire class A version.

  • What is the best way to cut them?

    For dust-free wet cutting, use a wet tile saw. Angle grinder is a second best option as it creates dust. Please remember to use dust mask and glasses.

Interested in Brick Panel System?

Call us at 020 4578 0824 or contact us for your free quote.
