R|BRICK
Brick Rainscreen System

This system uses brick slips cut from hand-made or clinker bricks which are mounted onto a metal panels which pre-formed slots which secure the slips into place. We supply a number of options in a variety of grades of steel. Each option comes with or without additional coating.


The slip bricks are delivered with a special horizontal groove that allows for dry installation without the need of any adhesives or fixings. The design of the panel makes it possible to maintain the coursing and it is possible to move the slips along the panels. The installation is completed by pointing the joints with special brick slip pointing mortar.

The system can accommodate different heights of brick slips and, apart from our standard range, we can supply brick slips from any manufacturer in UK and Europe. Large selection of brick slips are available: extruded, hand-made, reclaimed,  special brick slips (long format, glazed) as well as stone slips. Bold and sharp colours in variety of sizes in British and European formats 10 colours of pointing mortar with trass specially designed for brickwork.


Contact us for a quote

8 reasons to use R|BRICK Brick Rainscreen System

We work with you to come up with the very best solutions for your challenges!

01

Faster installation

Fast and simple installation: 2 men gang can install up to 20 sqm per day. No bonding of slips on site is required.

02

Lightweight & thin

System depth from only 35mm  and weight from only 60kg per sqm. Panels and brick slips are easy to handle.

03

Simple

Installation can be done by people without any experience in bricklaying. Fixing of metal panels is straightforward and inserting brick slips cannot by any simpler

04

High quality

High quality brickwork from reputable suppliers guarantees high quality exterior finish, durability and grand appearance of both domestic and commercial buildings

05

Versatile

Ideal rain screen for both on site construction or for prefabricated buildings. Designed for installation on all construction types can be fixed to metal or timber studs.

06

Eco friendly

Made of natural kiln-fired bricks in selection of types, e.g. handmade or extruded as well as natural stone cladding slips.

07

Safe

System comes with 25-year manufacturer's warranty which can be insurance-backed. Metal panels come in high grade steel, including stainless steel in both 304 and 316 grades - coated or non-coated.

08

Cost effective

Our system cost is lower than other comparable systems without compromising on quality and effectiveness. Contact us for a quote.

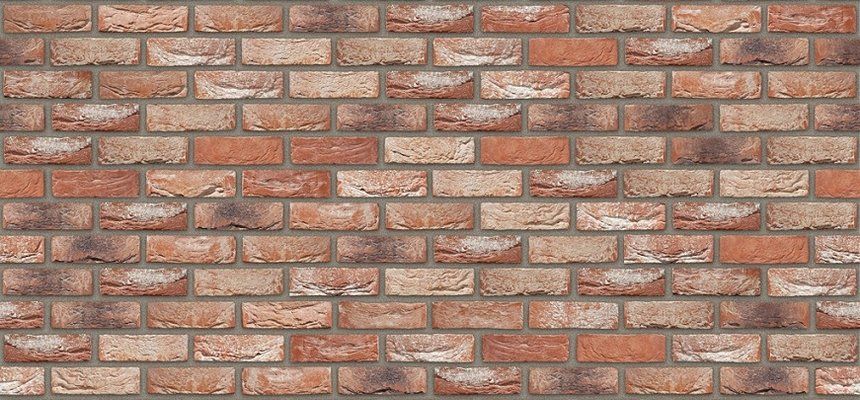

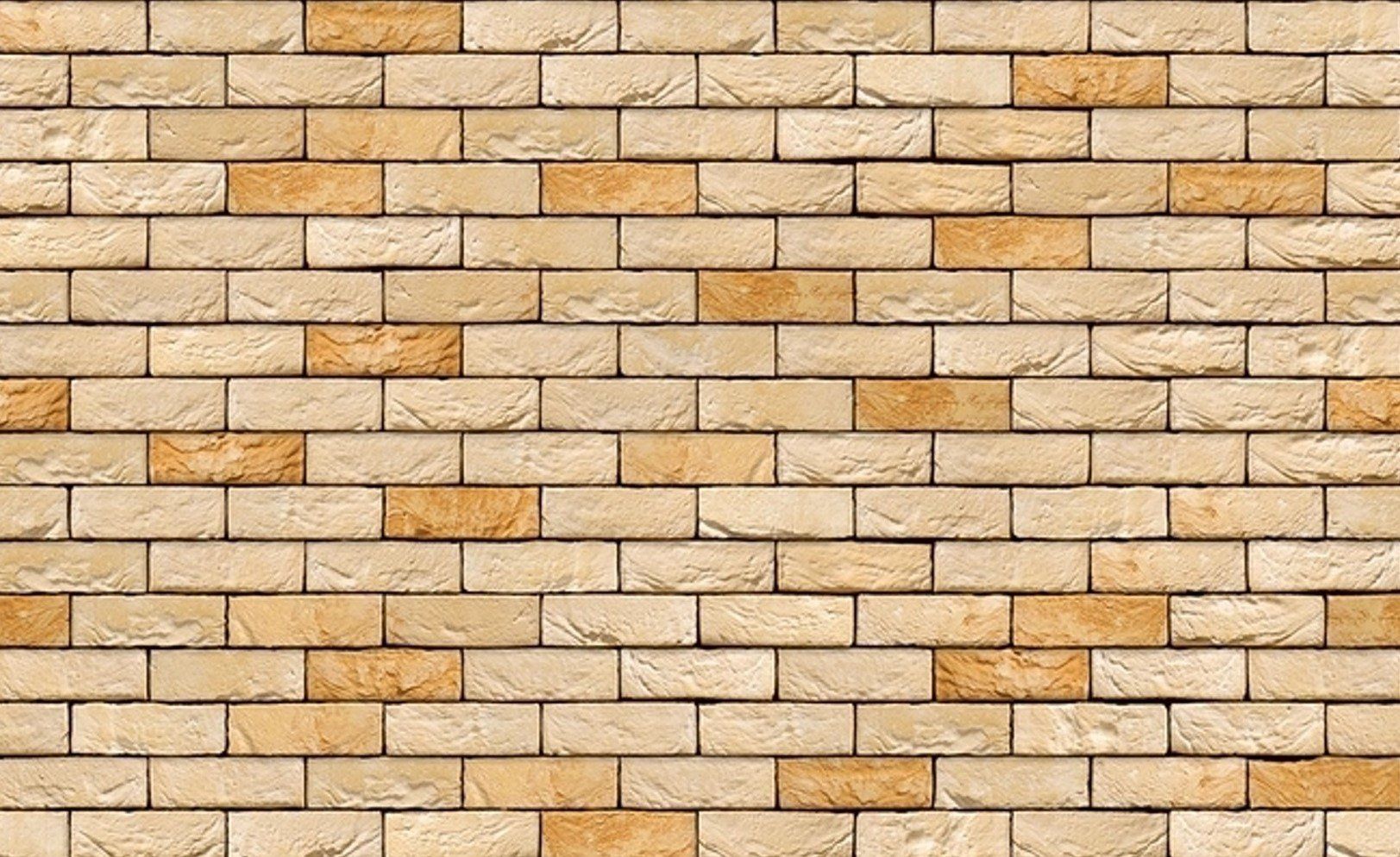

Brick Rainscreen System - Clay Uno Collection

The below brick slip finishes are available on short lead times.

Hundreds of colours are available - please ask for details.

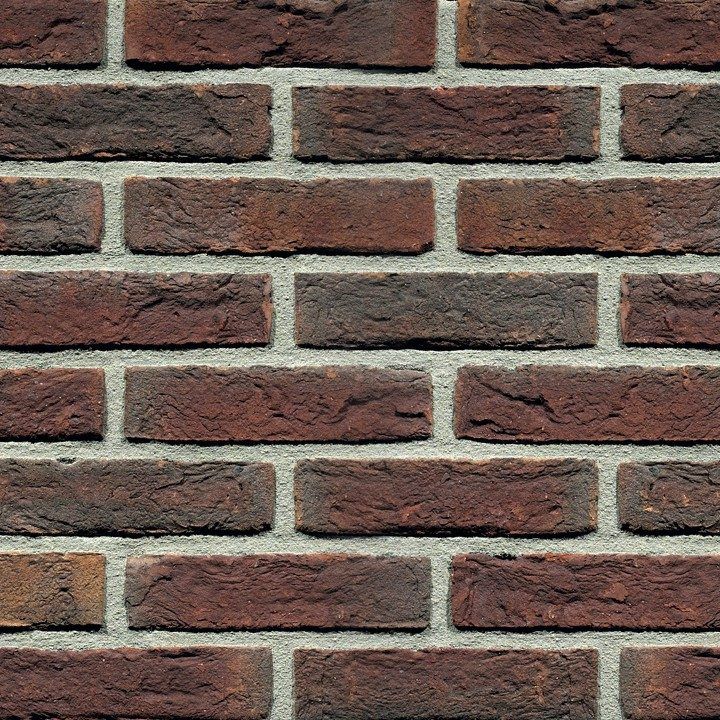

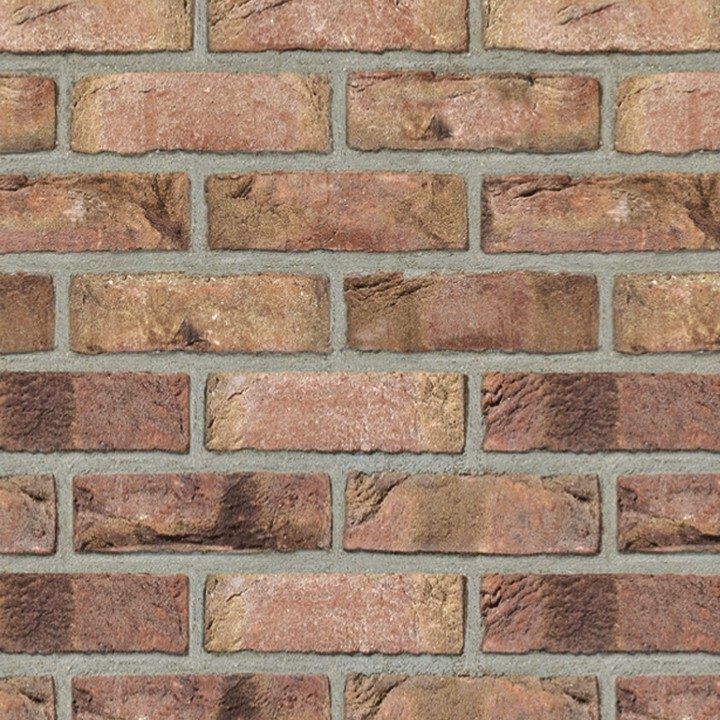

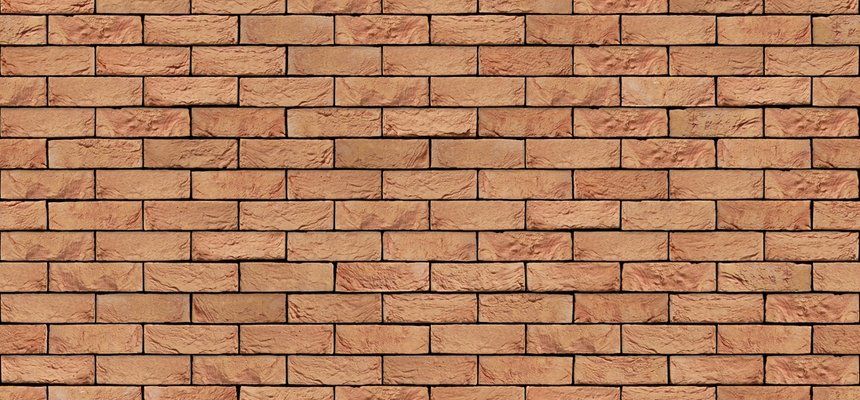

Brick Rainscreen System - Clay Due Collection

The below brick slip finishes are available on short lead times.

Hundreds of colours are available - please ask for details.

System Elements

Pictures of elements of the Brick Rainscreen System

Frequently asked questions

Please refer below to the questions we are frequently asked
  • Can this brick rainscreen system be installed both externally and internally?

    Yes. The system is mainly designed for exterior use, however, it can also be used on internal walls.

  • Are the panels difficult to install?

    Not at all. Metal panels are screwed to metal or timber battens, slips are inserted into slots on the panels, and finally, the finished brickwork is pointed with pointing mortar.

  • What surfaces can the panels be installed onto?

    Primarily they are designed for use on timber or metal battens. However, they can also be installed onto flat surfaces, such as timber.

  • Are they resistant to heat?

    All system elements are made of materials which are non-combustible on class A., which makes the entire system non-combustible in class A.

  • What is the best way to cut them?

    Metal panels can be made using an angle grinder with metal cutting disc, and brick slips should also be cut with an angle grinder, but with stone & brick cutting disc.
